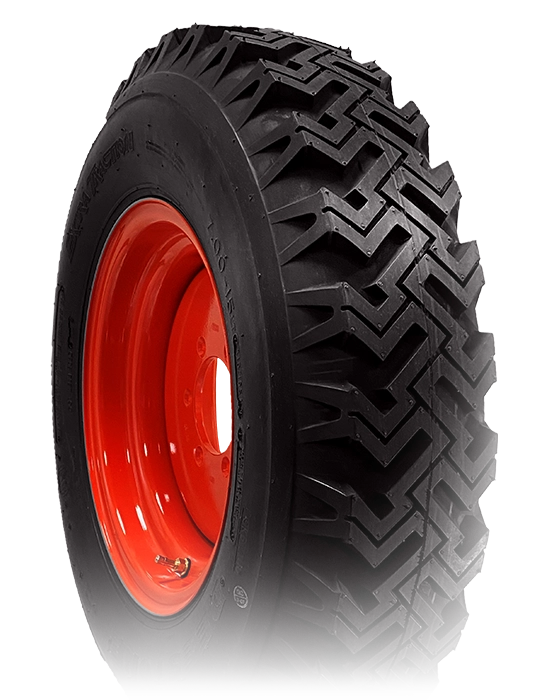

MUD-N-SNOW Assemblies
MUD-N-SNOW assemblies feature an aggressive tread design and narrow, compact footprint to deliver higher traction than standard skid loader tires, resulting in up to 40% faster operation. The more narrow tread allows for a better fit on pathways and sidewalks, which not only improves efficiency, but also helps prevent damage to turf and sprinkler heads. The HSLA-grade steel wheels are precision manufactured to handle high-stress applications.
Specifications for all products:
| PART # | TIRE SIZE | PLY | RATED PRESSURE | OVERALL DIAMETER | SECTION WIDTH | RIM | BOLT PATTERN | RIM MATERIAL | RIM COLOR | TIRE PART # | WHEEL PART # |
| TA16601201LH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 6 ON 6 | STEEL | SILVER | T75016004 | W166012 |
| TA16601201RH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 6 ON 6 | STEEL | SILVER | T75016004 | W166012 |
| TA16600601LH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 10.75 | STEEL | BOBCAT ORANGE | T75016004 | W166006 |
| TA16600601RH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 10.75 | STEEL | BOBCAT ORANGE | T75016004 | W166006 |
| TA16601401LH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 8 | STEEL | BLACK | T75016004 | W166014 |
| TA16601401RH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 8 | STEEL | BLACK | T75016004 | W166014 |
| TA16601001LH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 8 | STEEL | BOBCAT ORANGE | T75016004 | W166010 |
| TA16601001RH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 8 | STEEL | BOBCAT ORANGE | T75016004 | W166010 |
| TA16600701LH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 8 | STEEL | SILVER | T75016004 | W166007 |
| TA16600701RH | 7.50-16 | 12 | 87 | 32.24 | 8.66 | 16X6.00 | 8 ON 8 | STEEL | SILVER | T75016004 | W166007 |
